    Service Procedures

    This document describes how to replace parts or add new parts to a system.

    Before you service the system, ensure that you have received the new part and have correctly identified its intended location in the system. Go to the Unisphere Service section for instructions on how to identify failures, order new parts and safely handle hardware components.

    When servicing the system, only add or replace one component at a time. New hardware added while simultaneously servicing other components may not be recognized by the system and can cause errors.

    Note:  Review the information in Safety precautions for handling replaceable units before handling replaceable parts.

    Replace a faulted disk in the DPE

    Take the following actions to remove a faulted disk and install the replacement disk into the DPE.

    Identifying and locating the faulted part in Unisphere

    Before you replace a faulted part, locate its placement within the storage system.

    Procedure
    1. In Unisphere, select System View.
    2. Select the Enclosures page.
    3. Locate the faulted part marked orange, and displayed in the Enclosures view.

    Remove a faulted 2.5" disk

    Procedure
    1. Push down on the orange button to release the latch.
    2. Remove the disk from the slot.
      Figure 1. Removing a 2.5" disk
      Removing a 2.5" disk
    3. Place the disk on a static-free surface.

    Install a 2.5" disk

    Note:  If you are installing multiple disks in a system that is powered up, wait at least 10 seconds before sliding the next disk into position.
    Procedure
    1. Align the disk with the guides in the slot.
    2. With the latch fully opened, gently push the disk into the slot.
      The latch begins to rotate downward when it meets the enclosure.
    3. Push the orange button until the disk is fully seated in the slot.
    4. Push the latch down until it locks into place
      The activity light flashes to indicate that the spin-up sequence has begun.
      Figure 2. Installing a 2.5" disk
      Installing a 2.5" disk

    Verifying the operation of the new part in Unisphere

    Verify that the new part is recognized by your system, and operating correctly.

    Procedure
    1. In Unisphere, select System View.
    2. On the Summary page, confirm that the system status is OK.
    3. Select the Enclosures page.
    4. Verify that the part appears with the OK status in the enclosure view. You may need to refresh Unisphere by clicking on the refresh icon next to the Enclosures view.
      If the system health monitor shows the part as faulted, contact your service provider.

    Returning a faulted part

    We appreciate the return of defective material within 5 business days (for US returns). For International customers, please return defective material within 5-10 business days. All instructions and material required to return your defective part were supplied with your good part shipment.

    Procedure
    1. Package the faulted part in the shipping box that contained the replacement part, and seal the box.
    2. Ship the failed part to your service provider as described in the instructions that were included with the replacement part.
    3. (Optional) For more information about returning customer-replaceable parts, from Unisphere, click Support > Replace Disk Drives, Power Supplies, and Other Parts > Return a Part to display the part return instructions.
      If your screen does not show the Return a Part option, contact your service provider for instructions on what to do next.

    Add a new disk in the DPE

    Take the following actions to add a new disk in the DPE.

    Removing the front bezel

    Procedure
    1. If the bezel has a lock, insert the key that shipped with your enclosure into the lock, and turn the key to unlock the bezel.
    2. Press the two latch buttons on the bezel surface to release the bezel from the cabinet.
    3. Pull the bezel off the cabinet and put it on a clean, static-free surface.

    Remove a disk filler module

    Procedure
    1. Insert your finger into the cutout on the disk filler module.
    2. Pull the filler module out of the slot.
      Figure 3. Removing a disk filler module

    Install a 2.5" disk

    Note:  If you are installing multiple disks in a system that is powered up, wait at least 10 seconds before sliding the next disk into position.
    Procedure
    1. Align the disk with the guides in the slot.
    2. With the latch fully opened, gently push the disk into the slot.
      The latch begins to rotate downward when it meets the enclosure.
    3. Push the orange button until the disk is fully seated in the slot.
    4. Push the latch down until it locks into place
      The activity light flashes to indicate that the spin-up sequence has begun.
      Figure 4. Installing a 2.5" disk
      Installing a 2.5" disk

    Verifying the operation of the new part in Unisphere

    Verify that the new part is recognized by your system, and operating correctly.

    Procedure
    1. In Unisphere, select System View.
    2. On the Summary page, confirm that the system status is OK.
    3. Select the Enclosures page.
    4. Verify that the part appears with the OK status in the enclosure view. You may need to refresh Unisphere by clicking on the refresh icon next to the Enclosures view.
      If the system health monitor shows the part as faulted, contact your service provider.

    Replace a power supply

    Take the following actions to remove the faulted power supply and install the replacement power supply into the system.

    Identifying and locating the faulted part in Unisphere

    Before you replace a faulted part, locate its placement within the storage system.

    Procedure
    1. In Unisphere, select System View.
    2. Select the Enclosures page.
    3. Locate the faulted part marked orange, and displayed in the Enclosures view.

    DPE power supply LEDs

    Use the fault LEDs to identify the faulted part.

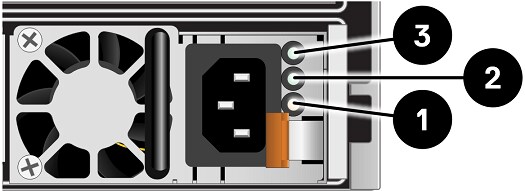

    Figure 5. DPE power supply LEDs
    Table 1. DPE power supply LEDs
    LED
    Location
    State
    Description
    AC power (input)
    Green
    AC power is on.
    Off
    AC power is off. Verify source power
    DC power (output)
    Green
    DC power is on.
    Off
    DC power is off. Verify source power.
    Fault
    Solid amber
    Power supply or backup fault. Check cable connection.
    Blinking amber
    BIOS, POST, and OS starting up or system overheating.
    Off
    No fault.

    Remove a power supply

    There are two power supplies. The power supplies are installed in the top and bottom SP assembly, and the top power supply is installed upside-down. This procedure works for removing either power supply, however, the direction in which the release handle is pressed is to the left for the bottom power supply, and to the right for the top power supply.
    Note:  You do not need to power down the system to remove a power supply.
    Procedure
    1. Rotate the power cable retention bail to the left (to the right for the bottom power supply). Remove the power cable from the power supply.
      Figure 6. Removing the power cable
      The power cable being removed from the bottom node's power supply. The retaining bail rotates to the left, and the power cord comes out.
    2. Push and hold the orange release tab to the left (to the right for the bottom power supply) and grasp the power supply by its handle. Remove the power supply by pulling it from the SP assembly.
      Figure 7. Removing a power supply
      The power supply being removed from the bottom node. The orange handle is pushed in, then the power supply is removed by the handle.

    Install a power supply

    The power supplies are installed in the top and bottom SP assemblys, meaning that the top power supply is installed upside-down. This procedure works for installing either power supply.
    Procedure
    1. Align the power supply with the slot in the SP assembly. The power cable retention bail will be on the right for the bottom power supply and on the left for the top power supply.
    2. Push the power supply into the SP assembly until it clicks into place.
      Figure 8. Installing a power supply
      The power supply sliding back into the bottom node.
    3. Connect the power cable to the power supply and secure the cord with the retention bail at the connector.
      Figure 9. Inserting the power cable
      The power cord plugging into the power supply, with the retention bail closing over the cord to hold it in place.

    Verifying the operation of the new part in Unisphere

    Verify that the new part is recognized by your system, and operating correctly.

    Procedure
    1. In Unisphere, select System View.
    2. On the Summary page, confirm that the system status is OK.
    3. Select the Enclosures page.
    4. Verify that the part appears with the OK status in the enclosure view. You may need to refresh Unisphere by clicking on the refresh icon next to the Enclosures view.
      If the system health monitor shows the part as faulted, contact your service provider.

    Returning a faulted part

    We appreciate the return of defective material within 5 business days (for US returns). For International customers, please return defective material within 5-10 business days. All instructions and material required to return your defective part were supplied with your good part shipment.

    Procedure
    1. Package the faulted part in the shipping box that contained the replacement part, and seal the box.
    2. Ship the failed part to your service provider as described in the instructions that were included with the replacement part.
    3. (Optional) For more information about returning customer-replaceable parts, from Unisphere, click Support > Replace Disk Drives, Power Supplies, and Other Parts > Return a Part to display the part return instructions.
      If your screen does not show the Return a Part option, contact your service provider for instructions on what to do next.

    Replace an embedded module

    Take the following actions to remove the faulted embedded module and install the replacement embedded module into the system.

    Identifying and locating the faulted part in Unisphere

    Before you replace a faulted part, locate its placement within the storage system.

    Procedure
    1. In Unisphere, select System View.
    2. Select the Enclosures page.
    3. Locate the faulted part marked orange, and displayed in the Enclosures view.

    Preparing the SP assembly for service

    Reset and hold is a special state during which power is maintained to the SP assembly so that I/O modules, embedded modules, and 4-port cards can be safely removed. This state has fewer management capabilities than Service Mode, but allows for easier I/O module, embedded module and 4-port card replacement.
    Note:  Both SP assemblies must NOT be in reset and hold simultaneously. The system should be up for at least 40 minutes since its last reboot before being placed into reset and hold.
    Procedure
    1. Open Unisphere and select Service, then Service Tasks.
    2. Under the name of the SP assembly where you will install the new I/O module, embedded module or 4-port card, select Reset and Hold and then click Execute.
    3. When prompted, type the service password to put the SP assembly into reset and hold.
    4. (Optional) Either refresh the browser or follow the onscreen instructions to restore full-functionality to Unisphere.
      When placing the primary storage processor into hold in reset, Unisphere becomes momentarily unresponsive as the management services transfer over to the other SP. After about 10 minutes, the SP assembly's status will change to Degraded, and indicate that the SP assembly has been placed in held in reset. The SP assembly's status can be confirmed by checking the log entries in Unisphere under Events > Alerts.
    5. Wait until the SP assembly fault LED and power indicator LED are lit solid amber and green, respectively, and the peer SP assembly's Unsafe to Remove LED is lit before moving to the next task.

    Embedded module LEDs

    Use the fault LEDs to identify the faulted part.

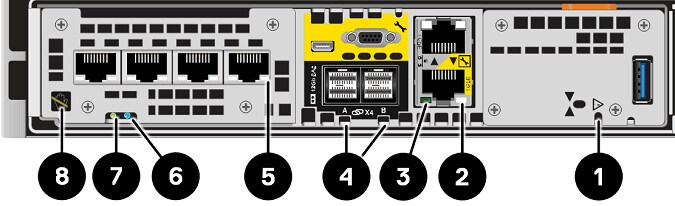

    Figure 10. Embedded module LEDs
    Table 2. Embedded module LEDs
    LED
    Location
    State
    Description
    Embedded module power
    Amber
    Embedded module has faulted
    Off
    No fault has occurred, normal operation.
    Ethernet port link
    Green
    Link established.
    Off
    No link established.
    Ethernet port activity
    Amber
    Port activity.
    Off
    No port activity.
    SAS port/activity Link
    Blue
    SAS port link is up.
    Off
    No link established.
    Port link
    Green
    Link up with high speed.
    Amber
    Link up with degraded speed.
    Off
    Link down.
    Storage processor assembly fault
    Amber
    Fault has occurred.
    Blue
    Storage processor assembly in Degraded Mode.
    Amber or blue blinking
    System is booting.
    Blue and amber alternating (green for 3 seconds)
    System not initialized. A management IP address has not been assigned.
    Blue and amber alternating at one second intervals
    Storage processor assembly in Service Mode.
    Off
    No fault has occurred, normal operation.
    Storage processor assembly power
    Green
    Storage processor assembly is on (main power).
    Green blinking
    Storage processor assembly is initializing a serial over LAN session (Standby Mode).
    Off
    Storage processor assembly is off.
    Unsafe to remove
    White
    Do not remove the embedded module. Improper removal could cause data loss.
    Off
    Safe to remove the embedded module when the embedded module has been properly prepared.

    Remove a faulted embedded module

    Procedure
    1. Label and disconnect all cables attached to the embedded module.
    2. Push the orange tab to release the lever.
      Figure 11. Releasing the lever on the embedded module
      The orange release tab being pressed in, which releases the lever locking in the embedded module. The lever on the embedded module pulling away from the system.
    3. Pull the release lever away from the system. The embedded module releases from the system as you pull the lever.
      Figure 12. Removing the embedded module from the system
      The embedded module being removed from the node.
    4. Remove the embedded module from the slot.

    Transfer the 4-port card

    If you are replacing the embedded module, remove the 4-port card from the old embedded module and install it into the new embedded module. Do not transfer the 4-port card while replacing a SP assembly.

    Remove a 4-port card

    Procedure

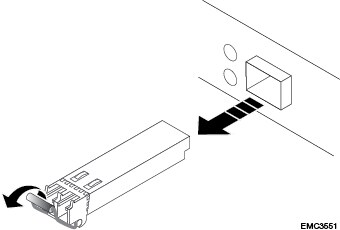

    1. Remove the SFPs from the front of the embedded module.
    2. Remove the air dam at the front of the embedded module by loosening the four captive screws.
    3. Push down the two blue tabs on the back of the 4-port card to release the 4-port card.
      Figure 13. Opening the retaining tabs
    4. Lift the 4-port card off the pegs, and pull the 4-port card away from the embedded module.
      Figure 14. Removing the 4-port card

    Install a 4-port card

    Procedure
    1. Align the 4-port card in the embedded module so that the ports on the front line up with the slots on the front of the embedded module.
    2. Align the white pegs beneath the holes on the 4-port card.
      CAUTION  Do not force the 4-port card into place. If the 4-port card does not smoothly seat, re-align the pegs and try again.
      Figure 15. Seating the 4-port card
    3. Gently push down on the upper-left circle on the 4-port card.
    4. Push up on the blue tabs until they lock into place.
      Figure 16. Locking the 4-port card into position
    5. Replace the air dam and tighten the four captive screws.
    6. Install the SFPs into the embedded module.

    Install an embedded module

    Procedure
    1. Align the embedded module with the empty slot and carefully push it into the slot.

      As the embedded module is installed, the release lever rotates inward.

      Figure 17. Installing the embedded module
      Pushing in the embedded module. As the embedded module slides into the system, the lever closes.
    2. When the embedded module is fully seated, push the release lever back into the system until the orange tab locks the lever in place.
      Figure 18. Locking the release lever
      The lever being locked in the system by the orange tab.
    3. Connect each cable into the same port from which it was removed.

    Rebooting a SP assembly into Normal Mode

    Before you begin
    Ensure that the replacement I/O module, embedded module, or 4-port card has been correctly installed using Unisphere. The replaced part's status indicates that the module is powered off and will power on during the next system reboot.
    Reboot the recently serviced SP assembly into Normal Mode using the procedure that follows:
    Procedure
    1. Open Unisphere and select Service, then Service Tasks.
    2. Under the name of the storage processor where you installed the new I/O module, embedded module, or 4-port card, select Reboot and click Execute.
    3. When prompted, type the Service Password to put the SP assembly into Normal Mode.

      It may take up to 15 minutes for the system to complete its reboot to return to normal mode.

    Verifying the operation of the new part in Unisphere

    Verify that the new part is recognized by your system, and operating correctly.

    Procedure
    1. In Unisphere, select System View.
    2. On the Summary page, confirm that the system status is OK.
    3. Select the Enclosures page.
    4. Verify that the part appears with the OK status in the enclosure view. You may need to refresh Unisphere by clicking on the refresh icon next to the Enclosures view.
      If the system health monitor shows the part as faulted, contact your service provider.

    Add a 4-port card

    Take the following actions to install a new 4-port card into the system.

    Preparing the SP assembly for service

    Reset and hold is a special state during which power is maintained to the SP assembly so that I/O modules, embedded modules, and 4-port cards can be safely removed. This state has fewer management capabilities than Service Mode, but allows for easier I/O module, embedded module and 4-port card replacement.
    Note:  Both SP assemblies must NOT be in reset and hold simultaneously. The system should be up for at least 40 minutes since its last reboot before being placed into reset and hold.
    Procedure
    1. Open Unisphere and select Service, then Service Tasks.
    2. Under the name of the SP assembly where you will install the new I/O module, embedded module or 4-port card, select Reset and Hold and then click Execute.
    3. When prompted, type the service password to put the SP assembly into reset and hold.
    4. (Optional) Either refresh the browser or follow the onscreen instructions to restore full-functionality to Unisphere.
      When placing the primary storage processor into hold in reset, Unisphere becomes momentarily unresponsive as the management services transfer over to the other SP. After about 10 minutes, the SP assembly's status will change to Degraded, and indicate that the SP assembly has been placed in held in reset. The SP assembly's status can be confirmed by checking the log entries in Unisphere under Events > Alerts.
    5. Wait until the SP assembly fault LED and power indicator LED are lit solid amber and green, respectively, and the peer SP assembly's Unsafe to Remove LED is lit before moving to the next task.

    Remove an embedded module

    Procedure
    1. Label and disconnect all cables attached to the embedded module.
    2. Push the orange tab to release the lever.
      Figure 19. Releasing the lever on the embedded module
      The orange release tab being pressed in, which releases the lever locking in the embedded module. The lever on the embedded module pulling away from the system.
    3. Pull the release lever away from the system. The embedded module releases from the system as you pull the lever.
      Figure 20. Removing the embedded module from the system
      The embedded module being removed from the node.
    4. Remove the embedded module from the slot.

    Identify the location for the new 4-port card

    Ensure that you install the new 4-port card in the correct location.

    Install the new 4-port card in slot 0 within the embedded module. When looking at the embedded module from the front, slot 0 is on the left side of the embedded module.

    Install a 4-port card

    Procedure
    1. Remove the air dam at the front of the embedded module.
    2. Align the 4-port card in the embedded module so that the ports on the front line up with the slots on the front of the embedded module.
    3. Align the white pegs beneath the holes on the 4-port card.
      CAUTION  Do not force the 4-port card into place. If the 4-port card does not smoothly seat, re-align the pegs and try again.
      Figure 21. Seating the 4-port card
    4. Gently push down on the upper-left circle on the 4-port card.
    5. Push up on the blue tabs until they lock into place.
      Figure 22. Locking the 4-port card into position
    6. Install the air dam that came with the 4-port card, and tighten the four captive screws.
    7. If the 4-port card includes SFPs, install them into the embedded module.

    Install an embedded module

    Procedure
    1. Align the embedded module with the empty slot and carefully push it into the slot.

      As the embedded module is installed, the release lever rotates inward.

      Figure 23. Installing the embedded module
      Pushing in the embedded module. As the embedded module slides into the system, the lever closes.
    2. When the embedded module is fully seated, push the release lever back into the system until the orange tab locks the lever in place.
      Figure 24. Locking the release lever
      The lever being locked in the system by the orange tab.
    3. Connect each cable into the same port from which it was removed.

    Adding the 4-port card to SP B

    You have completed the addition of the 4-port card to SP A. Now you are ready to add the other 4-port card to SP B by repeating the tasks that you just performed for SP A.

    Note:  Ensure that you install the 4-port card in the same slot on SP B that was used on SP A.
    Procedure
    1. Place SP B into reset and hold.
    2. Locate the slot for the new 4-port card on SP B.
    3. Remove the embedded module.
    4. Install the new 4-port card.
    5. Replace the embedded module.
    6. Reboot SP B into normal mode.

    Rebooting a SP assembly into Normal Mode

    Before you begin
    Ensure that the replacement I/O module, embedded module, or 4-port card has been correctly installed using Unisphere. The replaced part's status indicates that the module is powered off and will power on during the next system reboot.
    Reboot the recently serviced SP assembly into Normal Mode using the procedure that follows:
    Procedure
    1. Open Unisphere and select Service, then Service Tasks.
    2. Under the name of the storage processor where you installed the new I/O module, embedded module, or 4-port card, select Reboot and click Execute.
    3. When prompted, type the Service Password to put the SP assembly into Normal Mode.

      It may take up to 15 minutes for the system to complete its reboot to return to normal mode.

    Committing the new I/O ports

    You must commit the new I/O ports before they can be used.

    Procedure
    1. In Unisphere, select System View.
    2. Select the DPE and select Commit IO Ports.
      Note:  Committing I/O ports requires multiple reboots of the SPs and may take up to an hour to complete. You can find I/O ports commit and SP reboot status details on Service > Logs. During these reboots you will temporarily lose Unisphere connectivity.

      After this process completes, the new I/O ports have been successfully committed into the system.

      If the commit of the new I/O ports fails, please wait 15 minutes for the system to fully boot and then re-attempt the commit process.

    Verifying the operation of the new part in Unisphere

    Verify that the new part is recognized by your system, and operating correctly.

    Procedure
    1. In Unisphere, select System View.
    2. On the Summary page, confirm that the system status is OK.
    3. Select the Enclosures page.
    4. Verify that the part appears with the OK status in the enclosure view. You may need to refresh Unisphere by clicking on the refresh icon next to the Enclosures view.
      If the system health monitor shows the part as faulted, contact your service provider.

    Replace a 4-port card

    Take the following actions to remove the 4-port card and install the replacement 4-port card into the system.

    Identifying and locating the faulted part in Unisphere

    Before you replace a faulted part, locate its placement within the storage system.

    Procedure
    1. In Unisphere, select System View.
    2. Select the Enclosures page.
    3. Locate the faulted part marked orange, and displayed in the Enclosures view.

    Preparing the SP assembly for service

    Reset and hold is a special state during which power is maintained to the SP assembly so that I/O modules, embedded modules, and 4-port cards can be safely removed. This state has fewer management capabilities than Service Mode, but allows for easier I/O module, embedded module and 4-port card replacement.
    Note:  Both SP assemblies must NOT be in reset and hold simultaneously. The system should be up for at least 40 minutes since its last reboot before being placed into reset and hold.
    Procedure
    1. Open Unisphere and select Service, then Service Tasks.
    2. Under the name of the SP assembly where you will install the new I/O module, embedded module or 4-port card, select Reset and Hold and then click Execute.
    3. When prompted, type the service password to put the SP assembly into reset and hold.
    4. (Optional) Either refresh the browser or follow the onscreen instructions to restore full-functionality to Unisphere.
      When placing the primary storage processor into hold in reset, Unisphere becomes momentarily unresponsive as the management services transfer over to the other SP. After about 10 minutes, the SP assembly's status will change to Degraded, and indicate that the SP assembly has been placed in held in reset. The SP assembly's status can be confirmed by checking the log entries in Unisphere under Events > Alerts.
    5. Wait until the SP assembly fault LED and power indicator LED are lit solid amber and green, respectively, and the peer SP assembly's Unsafe to Remove LED is lit before moving to the next task.

    Embedded module LEDs

    Use the fault LEDs to identify the faulted part.

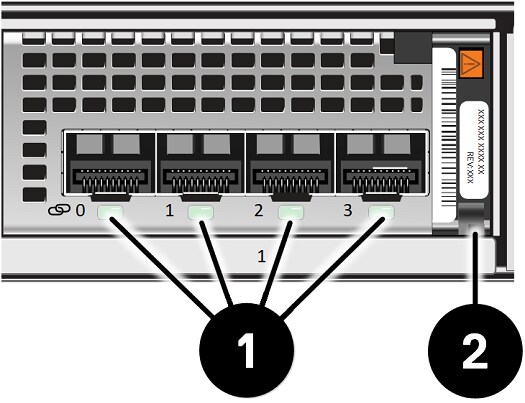

    Figure 25. Embedded module LEDs
    Table 3. Embedded module LEDs
    LED
    Location
    State
    Description
    Embedded module power
    Amber
    Embedded module has faulted
    Off
    No fault has occurred, normal operation.
    Ethernet port link
    Green
    Link established.
    Off
    No link established.
    Ethernet port activity
    Amber
    Port activity.
    Off
    No port activity.
    SAS port/activity Link
    Blue
    SAS port link is up.
    Off
    No link established.
    Port link
    Green
    Link up with high speed.
    Amber
    Link up with degraded speed.
    Off
    Link down.
    Storage processor assembly fault
    Amber
    Fault has occurred.
    Blue
    Storage processor assembly in Degraded Mode.
    Amber or blue blinking
    System is booting.
    Blue and amber alternating (green for 3 seconds)
    System not initialized. A management IP address has not been assigned.
    Blue and amber alternating at one second intervals
    Storage processor assembly in Service Mode.
    Off
    No fault has occurred, normal operation.
    Storage processor assembly power
    Green
    Storage processor assembly is on (main power).
    Green blinking
    Storage processor assembly is initializing a serial over LAN session (Standby Mode).
    Off
    Storage processor assembly is off.
    Unsafe to remove
    White
    Do not remove the embedded module. Improper removal could cause data loss.
    Off
    Safe to remove the embedded module when the embedded module has been properly prepared.

    Remove an embedded module

    Procedure
    1. Label and disconnect all cables attached to the embedded module.
    2. Push the orange tab to release the lever.
      Figure 26. Releasing the lever on the embedded module
      The orange release tab being pressed in, which releases the lever locking in the embedded module. The lever on the embedded module pulling away from the system.
    3. Pull the release lever away from the system. The embedded module releases from the system as you pull the lever.
      Figure 27. Removing the embedded module from the system
      The embedded module being removed from the node.
    4. Remove the embedded module from the slot.

    Remove a 4-port card

    Procedure
    1. Remove the SFPs from the front of the embedded module.
    2. Remove the air dam at the front of the embedded module by loosening the four captive screws.
    3. Push down the two blue tabs on the back of the 4-port card to release the 4-port card.
      Figure 28. Opening the retaining tabs
    4. Lift the 4-port card off the pegs, and pull the 4-port card away from the embedded module.
      Figure 29. Removing the 4-port card

    Install a 4-port card

    Procedure
    1. Align the 4-port card in the embedded module so that the ports on the front line up with the slots on the front of the embedded module.
    2. Align the white pegs beneath the holes on the 4-port card.
      CAUTION  Do not force the 4-port card into place. If the 4-port card does not smoothly seat, re-align the pegs and try again.
      Figure 30. Seating the 4-port card
    3. Gently push down on the upper-left circle on the 4-port card.
    4. Push up on the blue tabs until they lock into place.
      Figure 31. Locking the 4-port card into position
    5. Replace the air dam and tighten the four captive screws.
    6. Install the SFPs into the embedded module.

    Install an embedded module

    Procedure
    1. Align the embedded module with the empty slot and carefully push it into the slot.

      As the embedded module is installed, the release lever rotates inward.

      Figure 32. Installing the embedded module
      Pushing in the embedded module. As the embedded module slides into the system, the lever closes.
    2. When the embedded module is fully seated, push the release lever back into the system until the orange tab locks the lever in place.
      Figure 33. Locking the release lever
      The lever being locked in the system by the orange tab.
    3. Connect each cable into the same port from which it was removed.

    Rebooting a SP assembly into Normal Mode

    Before you begin
    Ensure that the replacement I/O module, embedded module, or 4-port card has been correctly installed using Unisphere. The replaced part's status indicates that the module is powered off and will power on during the next system reboot.
    Reboot the recently serviced SP assembly into Normal Mode using the procedure that follows:
    Procedure
    1. Open Unisphere and select Service, then Service Tasks.
    2. Under the name of the storage processor where you installed the new I/O module, embedded module, or 4-port card, select Reboot and click Execute.
    3. When prompted, type the Service Password to put the SP assembly into Normal Mode.

      It may take up to 15 minutes for the system to complete its reboot to return to normal mode.

    Verifying the operation of the new part in Unisphere

    Verify that the new part is recognized by your system, and operating correctly.

    Procedure
    1. In Unisphere, select System View.
    2. On the Summary page, confirm that the system status is OK.
    3. Select the Enclosures page.
    4. Verify that the part appears with the OK status in the enclosure view. You may need to refresh Unisphere by clicking on the refresh icon next to the Enclosures view.
      If the system health monitor shows the part as faulted, contact your service provider.

    Add an SFP

    Take the following actions to add a new SFP into the system.

    Install an SFP module

    Procedure
    1. Verify that the replacement SFP module has the same part number as the failed SFP module.
      The part number is on a label attached to the SFP module.
    2. Push the spring release latch up and slide the new SFP module into the port until it is securely connected.
      Figure 34. Installing an SFP module


    3. Push the spring release down to lock the SFP module into place.
    4. Reconnect the cable to the replacement SFP module.
    Example

    Committing the new I/O ports

    You must commit the new I/O ports before they can be used.

    Procedure
    1. In Unisphere, select System View.
    2. Select the DPE and select Commit IO Ports.
      Note:  Committing I/O ports requires multiple reboots of the SPs and may take up to an hour to complete. You can find I/O ports commit and SP reboot status details on Service > Logs. During these reboots you will temporarily lose Unisphere connectivity.

      After this process completes, the new I/O ports have been successfully committed into the system.

      If the commit of the new I/O ports fails, please wait 15 minutes for the system to fully boot and then re-attempt the commit process.

    Verifying the operation of the new part in Unisphere

    Verify that the new part is recognized by your system, and operating correctly.

    Procedure
    1. In Unisphere, select System View.
    2. On the Summary page, confirm that the system status is OK.
    3. Select the Enclosures page.
    4. Verify that the part appears with the OK status in the enclosure view. You may need to refresh Unisphere by clicking on the refresh icon next to the Enclosures view.
      If the system health monitor shows the part as faulted, contact your service provider.

    Replace a faulted SFP

    Take the following actions to remove the faulted SFP and install the replacement SFP into the system.

    Identifying and locating the faulted part in Unisphere

    Before you replace a faulted part, locate its placement within the storage system.

    Procedure
    1. In Unisphere, select System View.
    2. Select the Enclosures page.
    3. Locate the faulted part marked orange, and displayed in the Enclosures view.

    Remove an SFP module

    Procedure
    1. If a cable is connected to the SFP, disconnect the cable.
    2. Gently pull down on the spring release latch.
    3. While still holding onto the latch, gently pull out the SFP module.
      CAUTION  Do not remove the I/O module. Removing the I/O module causes the SP assembly to reboot immediately.
    Example
    Figure 35. Removing an SFP module


    Install an SFP module

    Procedure
    1. Verify that the replacement SFP module has the same part number as the failed SFP module.
      The part number is on a label attached to the SFP module.
    2. Push the spring release latch up and slide the new SFP module into the port until it is securely connected.
      Figure 36. Installing an SFP module


    3. Push the spring release down to lock the SFP module into place.
    4. Reconnect the cable to the replacement SFP module.
    Example

    Verifying the operation of the new part in Unisphere

    Verify that the new part is recognized by your system, and operating correctly.

    Procedure
    1. In Unisphere, select System View.
    2. On the Summary page, confirm that the system status is OK.
    3. Select the Enclosures page.
    4. Verify that the part appears with the OK status in the enclosure view. You may need to refresh Unisphere by clicking on the refresh icon next to the Enclosures view.
      If the system health monitor shows the part as faulted, contact your service provider.

    Returning a faulted part

    We appreciate the return of defective material within 5 business days (for US returns). For International customers, please return defective material within 5-10 business days. All instructions and material required to return your defective part were supplied with your good part shipment.

    Procedure
    1. Package the faulted part in the shipping box that contained the replacement part, and seal the box.
    2. Ship the failed part to your service provider as described in the instructions that were included with the replacement part.
    3. (Optional) For more information about returning customer-replaceable parts, from Unisphere, click Support > Replace Disk Drives, Power Supplies, and Other Parts > Return a Part to display the part return instructions.
      If your screen does not show the Return a Part option, contact your service provider for instructions on what to do next.

    Replace an I/O module

    Take the following actions to remove the faulted I/O module and install the replacement I/O module into the system.

    Identifying and locating the faulted part in Unisphere

    Before you replace a faulted part, locate its placement within the storage system.

    Procedure
    1. In Unisphere, select System View.
    2. Select the Enclosures page.
    3. Locate the faulted part marked orange, and displayed in the Enclosures view.

    Preparing the SP assembly for service

    Reset and hold is a special state during which power is maintained to the SP assembly so that I/O modules, embedded modules, and 4-port cards can be safely removed. This state has fewer management capabilities than Service Mode, but allows for easier I/O module, embedded module and 4-port card replacement.
    Note:  Both SP assemblies must NOT be in reset and hold simultaneously. The system should be up for at least 40 minutes since its last reboot before being placed into reset and hold.
    Procedure
    1. Open Unisphere and select Service, then Service Tasks.
    2. Under the name of the SP assembly where you will install the new I/O module, embedded module or 4-port card, select Reset and Hold and then click Execute.
    3. When prompted, type the service password to put the SP assembly into reset and hold.
    4. (Optional) Either refresh the browser or follow the onscreen instructions to restore full-functionality to Unisphere.
      When placing the primary storage processor into hold in reset, Unisphere becomes momentarily unresponsive as the management services transfer over to the other SP. After about 10 minutes, the SP assembly's status will change to Degraded, and indicate that the SP assembly has been placed in held in reset. The SP assembly's status can be confirmed by checking the log entries in Unisphere under Events > Alerts.
    5. Wait until the SP assembly fault LED and power indicator LED are lit solid amber and green, respectively, and the peer SP assembly's Unsafe to Remove LED is lit before moving to the next task.

    DPE I/O module LEDs

    Use the fault LEDs to identify the faulted part.

    Figure 37. DPE I/O module LEDs
    Table 4. DPE I/O module LEDs
    LED
    Location
    State
    Description
    Port link
    Green or blue
    Link up
    Off
    Link down
    Power fault
    Green
    Power
    Amber
    Power fault

    Remove a faulted I/O module

    Procedure
    1. Pull the trigger mechanism on the I/O module handle to release it.
      Figure 38. Releasing the I/O module
      Releasing the I/O module
    2. Gently pull the I/O module from the slot.
      Figure 39. Removing the I/O module
      Removing the I/O module

    Install a new I/O module

    Procedure
    1. Align the module with the empty slot and carefully push the module into the slot.
      Figure 40. Installing an I/O module
    2. When the I/O module appears seated, push and release the small button on the handle.
      • If the button remains in, the module is fully seated.
      • If the button springs back, gently push the module further into the chassis, then push it again.
      • If the button still does not rest flush with its handle, remove the module and repeat steps 1 and 2.
      Figure 41. Locking in the I/O module
    3. Connect the cables into the assigned I/O module ports.

    Rebooting a SP assembly into Normal Mode

    Before you begin
    Ensure that the replacement I/O module, embedded module, or 4-port card has been correctly installed using Unisphere. The replaced part's status indicates that the module is powered off and will power on during the next system reboot.
    Reboot the recently serviced SP assembly into Normal Mode using the procedure that follows:
    Procedure
    1. Open Unisphere and select Service, then Service Tasks.
    2. Under the name of the storage processor where you installed the new I/O module, embedded module, or 4-port card, select Reboot and click Execute.
    3. When prompted, type the Service Password to put the SP assembly into Normal Mode.

      It may take up to 15 minutes for the system to complete its reboot to return to normal mode.

    Verifying the operation of the new part in Unisphere

    Verify that the new part is recognized by your system, and operating correctly.

    Procedure
    1. In Unisphere, select System View.
    2. On the Summary page, confirm that the system status is OK.
    3. Select the Enclosures page.
    4. Verify that the part appears with the OK status in the enclosure view. You may need to refresh Unisphere by clicking on the refresh icon next to the Enclosures view.
      If the system health monitor shows the part as faulted, contact your service provider.

    Returning a faulted part

    We appreciate the return of defective material within 5 business days (for US returns). For International customers, please return defective material within 5-10 business days. All instructions and material required to return your defective part were supplied with your good part shipment.

    Procedure
    1. Package the faulted part in the shipping box that contained the replacement part, and seal the box.
    2. Ship the failed part to your service provider as described in the instructions that were included with the replacement part.
    3. (Optional) For more information about returning customer-replaceable parts, from Unisphere, click Support > Replace Disk Drives, Power Supplies, and Other Parts > Return a Part to display the part return instructions.
      If your screen does not show the Return a Part option, contact your service provider for instructions on what to do next.

    Add an I/O module

    Take the following actions to install a new I/O module into the system.

    If you are adding a 4-port SAS I/O module and connecting an 80-drive DAE that requires x8 connectivity, insert the SAS cable into the 4-port SAS I/O module before persisting the I/O module. The 4-port SAS I/O module must be persisted with the cable inserted for x8 connectivity.

    Note:  If the SAS back-end I/O module is powered on without any cables inserted, it is automatically set at x4 and cannot be used for x8 lane cabling.

    Locating a slot for a new I/O module

    Locate the slot with the I/O filler module that you want to replace with the new I/O module.

    Remove a filler I/O module

    Procedure
    1. Pull the trigger mechanism on the filler I/O module handle to release it.
    2. Gently pull the filler module from the slot.

    Install a new I/O module

    Procedure
    1. Align the module with the empty slot and carefully push the module into the slot.
      Figure 42. Installing an I/O module
    2. When the I/O module appears seated, push and release the small button on the handle.
      • If the button remains in, the module is fully seated.
      • If the button springs back, gently push the module further into the chassis, then push it again.
      • If the button still does not rest flush with its handle, remove the module and repeat steps 1 and 2.
      Figure 43. Locking in the I/O module
    3. Connect the cables into the assigned I/O module ports.

    Verifying that the new I/O ports are recognized

    Verify that the new I/O ports are recognized by your system and is not faulted using the procedure that follows.
    NOTICE  Do not attempt to commit the new I/O ports at this time. Wait until directed later in this procedure for the appropriate point to commit both new I/O ports.
    Procedure
    1. Open Unisphere™ and select System View.
    2. Select the new I/O ports in the the graphical view:

      In the graphical view, the ports should be highlighted yellow.

      If the system health monitor shows the ports as faulted, contact your service provider.

    Adding the I/O module to SP B

    You have completed the addition of the I/O module to SP A. Now you are ready to add the other I/O module to SP B by repeating the following tasks that you just performed for SP A:

    Note:  Ensure that you install the I/O module in the same slot on SP B that was used on SP A.
    1. Locate the slot for the new I/O module.
    2. Remove the I/O filler module from the SP B assembly.
    3. Unpack the I/O module.
    4. Install the I/O module.
    5. Verify that the system recognizes the I/O module.

    Committing the new I/O ports

    You must commit the new I/O ports before they can be used.

    Procedure
    1. In Unisphere, select System View.
    2. Select the DPE and select Commit IO Ports.
      Note:  Committing I/O ports requires multiple reboots of the SPs and may take up to an hour to complete. You can find I/O ports commit and SP reboot status details on Service > Logs. During these reboots you will temporarily lose Unisphere connectivity.

      After this process completes, the new I/O ports have been successfully committed into the system.

      If the commit of the new I/O ports fails, please wait 15 minutes for the system to fully boot and then re-attempt the commit process.

    Replace a fan module

    Take the following actions to remove the faulted fan module and install the replacement fan module into the system.

    Identifying and locating the faulted part in Unisphere

    Before you replace a faulted part, locate its placement within the storage system.

    Procedure
    1. In Unisphere, select System View.
    2. Select the Enclosures page.
    3. Locate the faulted part marked orange, and displayed in the Enclosures view.

    Preparing the storage processor (SP) for service

    To protect your system from accidental data loss during this maintenance activity, prepare the SP for service. You prepare the SP for service by putting it in Service Mode.

    Entering Service Mode stops I/O on the SP so that service tasks can be safely performed.

    Note:  Both SPs must NOT be in Service Mode at the same time.
    Procedure
    1. Open Unisphere and select Service, then Service Tasks.
    2. Under the name of the storage processor where you will install the new part, select Enter Service Mode and then click Execute.
    3. When prompted, enter the Service Password to put the SP into Service Mode.
    4. (Optional) Either refresh your browser or follow the on-screen instructions to restore full-functionality to Unisphere.
      When placing the primary storage processor into Service Mode, Unisphere will become momentarily unresponsive (about one minute) as the management services transfer over to the other SP.
    5. Return to cabinet with the system and locate the SP in the DPE from the back of the cabinet.
    6. Wait until the SP fault LED is flashing alternating amber and blue before continuing to the next task.
      The SP fault LED will flash alternating amber and blue while the SP remains in Service mode and is receiving active power.
      Figure 44. Storage processor assembly LEDs
      Table 5. Storage processor assembly LEDs
      LED
      Location
      State
      Description
      Storage processor assembly fault
      Amber
      Fault has occurred.
      Blue
      A management IP address has been assigned.
      Amber or blue blinking
      System is booting.
      Blue and amber alternating (blue for 3 seconds)
      System not initialized. A management IP address has not been assigned.
      Blue and amber alternating at one second intervals
      Storage processor assembly in Service Mode.
      Off
      No fault has occurred, normal operation.
      Storage processor assembly power
      Green
      Storage processor assembly is on (main power).
      Green blinking
      Storage processor assembly is initializing a serial over LAN session (Standby Mode).
      Off
      Storage processor assembly is off.

    Remove the SP assembly

    This procedure describes how to remove a SP assembly from the chassis. There are two SP assembliess. The top SP assembly is considered to be upside-down and mirrors the bottom SP assembly. The illustration shows the removal of the bottom SP assembly. The procedure for removing the top SP assembly is the same.

    CAUTION  Do not remove a SP assembly while the "Unsafe to remove" LED is lit.
    Procedure
    1. Rotate the power cable retention bail to the left (right for top power supply). Disconnect the power cable from the power supply.
      Note:  If the I/O module and network cables are not already labeled, label them clearly for reconnecting later.
      Figure 45. Removing the power cable
    2. Disconnect the network and all other cables from the back of the I/O modules and network ports on the SP assembly.
      Note:  Do not remove any cables from the other SP assembly.
    3. Pull the orange release trigger while gently pushing in on the SP assembly.
      The hook disengages from the locking mechanism, and the release tab slides out.
      Note:  The SP assembly comes completely out of the chassis. Be prepared to support the SP assembly to avoid dropping it.
      Figure 46. Disengaging the locking mechanism
      Disengaging the locking mechanism
    4. Use the release handle to pull the SP assembly outward enough to grasp the sides with both hands. Then, with both hands supporting the SP assembly, pull the SP assembly fully out of the enclosure.
      Figure 47. Removing the SP assembly
      Removing the node
    5. Place the SP assembly on a clean, flat, static-free work surface.

    Remove the top cover from the SP assembly

    Before you begin

    Ensure that the internal battery has powered off before removing the top cover. After removing the SP assembly from the rack, wait at least 30 seconds, or until you hear the internal battery power off.

    Procedure
    1. While pushing down the two blue release buttons, slide the top cover towards the rear of the system, until it stops.
      Figure 48. Releasing the top cover
    2. Lift the top cover upward and remove it from the SP assembly.
      Figure 49. Removing the top cover

    Remove the faulted fan module

    Procedure
    1. Disconnect the fan module power cable from the motherboard.
      Figure 50. Disconnecting fan power cable
    2. Unhook the fan module power cable from the cable holder.
    3. Squeeze the blue release tabs.
    4. Lift the fan module away from the motherboard.
      Figure 51. Removing the fan from the motherboard

    Install a new fan module

    Procedure
    1. Place the fan module into the mounting position in the SP assembly.
    2. Squeeze the blue tabs and press downward to lock the fan module into position.
    3. Connect the fan module power cable to the connector on the motherboard.
      Figure 52. Installing the fan module
      Installing the fan module

    Install the top cover on the SP assembly

    Procedure
    1. Position the top cover over the SP assembly and align it with the slots in the sides at the rear of the SP assembly.
      Figure 53. Aligning the top cover
    2. Pull the top cover forward to secure it in place.
      Figure 54. Securing the top cover

    Install the SP assembly

    Procedure
    1. Align the pins on the top of the SP assembly with the grooves on the top of the chassis.
    2. Slide the SP assembly into the chassis until it stops, about halfway in.
      Figure 55. Sliding the SP assembly halfway into the chassis
      Sliding the node halfway into the chassis
    3. Pull the black release tab out completely, and slide the rest of the SP assembly back into the chassis.
      The black release tab slides back into the system as it is inserted.
      Figure 56. Installing the SP assembly
      Installing the node
    4. Pull the orange release trigger and push in gently to re-engage the locking mechanism.
      If the black release tab comes out when pulled, the locking mechanism is not engaged.

    Rebooting an SP assembly into Normal Mode

    Before you begin

    If you removed the SP assembly during the replacement, wait about 10-15 minutes after reinserting the SP assembly into the system to allow the SP assembly to fully reboot into Service Mode. Ensure that the SP assembly fault LED is flashing alternating amber and blue (1 hz) before continuing.

    Note:  If you attempt this task before the SP assembly has completed its automatic reboot into Service Mode, the attempt to reboot into Normal mode fails.
    Reboot the recently serviced SP assembly into Normal Mode using the procedure that follows:
    Procedure
    1. Open Unisphere and select Service, then Service Tasks.
    2. Under the name of the SP assembly where you installed the new part, select Reboot and the click Execute.
    3. When prompted, enter the service password to put the SP assembly into Normal Mode.

      It may take up to 15 minutes for the system to complete its reboot, and return to normal mode.

    Verifying the operation of the new part in Unisphere

    Verify that the new part is recognized by your system, and operating correctly.

    Procedure
    1. In Unisphere, select System View.
    2. On the Summary page, confirm that the system status is OK.
    3. Select the Enclosures page.
    4. Verify that the part appears with the OK status in the enclosure view. You may need to refresh Unisphere by clicking on the refresh icon next to the Enclosures view.
      If the system health monitor shows the part as faulted, contact your service provider.

    Returning a faulted part

    We appreciate the return of defective material within 5 business days (for US returns). For International customers, please return defective material within 5-10 business days. All instructions and material required to return your defective part were supplied with your good part shipment.

    Procedure
    1. Package the faulted part in the shipping box that contained the replacement part, and seal the box.
    2. Ship the failed part to your service provider as described in the instructions that were included with the replacement part.
    3. (Optional) For more information about returning customer-replaceable parts, from Unisphere, click Support > Replace Disk Drives, Power Supplies, and Other Parts > Return a Part to display the part return instructions.
      If your screen does not show the Return a Part option, contact your service provider for instructions on what to do next.

    Replace a dual inline memory module (DIMM)

    Take the following actions to remove the faulted DIMM and install the replacement DIMM into the system.

    The DIMMs are located within the SP assembly. You can access the DIMMs by removing the SP assembly from the chassis and opening the top cover.

    Identifying and locating the faulted part in Unisphere

    Before you replace a faulted part, locate its placement within the storage system.

    Procedure
    1. In Unisphere, select System View.
    2. Select the Enclosures page.
    3. Locate the faulted part marked orange, and displayed in the Enclosures view.

    Preparing the storage processor (SP) for service

    To protect your system from accidental data loss during this maintenance activity, prepare the SP for service. You prepare the SP for service by putting it in Service Mode.

    Entering Service Mode stops I/O on the SP so that service tasks can be safely performed.

    Note:  Both SPs must NOT be in Service Mode at the same time.
    Procedure
    1. Open Unisphere and select Service, then Service Tasks.
    2. Under the name of the storage processor where you will install the new part, select Enter Service Mode and then click Execute.
    3. When prompted, enter the Service Password to put the SP into Service Mode.
    4. (Optional) Either refresh your browser or follow the on-screen instructions to restore full-functionality to Unisphere.
      When placing the primary storage processor into Service Mode, Unisphere will become momentarily unresponsive (about one minute) as the management services transfer over to the other SP.
    5. Return to cabinet with the system and locate the SP in the DPE from the back of the cabinet.
    6. Wait until the SP fault LED is flashing alternating amber and blue before continuing to the next task.
      The SP fault LED will flash alternating amber and blue while the SP remains in Service mode and is receiving active power.
      Figure 57. Storage processor assembly LEDs
      Table 6. Storage processor assembly LEDs
      LED
      Location
      State
      Description
      Storage processor assembly fault
      Amber
      Fault has occurred.
      Blue
      A management IP address has been assigned.
      Amber or blue blinking
      System is booting.
      Blue and amber alternating (blue for 3 seconds)
      System not initialized. A management IP address has not been assigned.
      Blue and amber alternating at one second intervals
      Storage processor assembly in Service Mode.
      Off
      No fault has occurred, normal operation.
      Storage processor assembly power
      Green
      Storage processor assembly is on (main power).
      Green blinking
      Storage processor assembly is initializing a serial over LAN session (Standby Mode).
      Off
      Storage processor assembly is off.

    Remove the SP assembly

    This procedure describes how to remove a SP assembly from the chassis. There are two SP assembliess. The top SP assembly is considered to be upside-down and mirrors the bottom SP assembly. The illustration shows the removal of the bottom SP assembly. The procedure for removing the top SP assembly is the same.

    CAUTION  Do not remove a SP assembly while the "Unsafe to remove" LED is lit.
    Procedure
    1. Rotate the power cable retention bail to the left (right for top power supply). Disconnect the power cable from the power supply.
      Note:  If the I/O module and network cables are not already labeled, label them clearly for reconnecting later.
      Figure 58. Removing the power cable
    2. Disconnect the network and all other cables from the back of the I/O modules and network ports on the SP assembly.
      Note:  Do not remove any cables from the other SP assembly.
    3. Pull the orange release trigger while gently pushing in on the SP assembly.
      The hook disengages from the locking mechanism, and the release tab slides out.
      Note:  The SP assembly comes completely out of the chassis. Be prepared to support the SP assembly to avoid dropping it.
      Figure 59. Disengaging the locking mechanism
      Disengaging the locking mechanism
    4. Use the release handle to pull the SP assembly outward enough to grasp the sides with both hands. Then, with both hands supporting the SP assembly, pull the SP assembly fully out of the enclosure.
      Figure 60. Removing the SP assembly
      Removing the node
    5. Place the SP assembly on a clean, flat, static-free work surface.

    Remove the top cover from the SP assembly

    Before you begin

    Ensure that the internal battery has powered off before removing the top cover. After removing the SP assembly from the rack, wait at least 30 seconds, or until you hear the internal battery power off.

    Procedure
    1. While pushing down the two blue release buttons, slide the top cover towards the rear of the system, until it stops.
      Figure 61. Releasing the top cover
    2. Lift the top cover upward and remove it from the SP assembly.
      Figure 62. Removing the top cover

    Remove the faulted dual inline memory module

    Procedure
    1. Locate the faulted DIMM in the SP assembly.
      The DIMMs are identified by white or black retaining tabs.
    2. Depress the white or black retaining tabs downward to free the DIMM from its slot.
    3. Remove the faulted DIMM.
      Figure 63. Removing the DIMM
      Removing the DIMM

    Install the dual inline memory module

    Procedure
    1. Touching only the outside edges of the DIMM, align the DIMM with the connector.
    2. Firmly push the carrier straight down into the connector.
      When the DIMM is fully seated, you will hear a snap, and feel the connector latches click into place.
      Figure 64. Installing the DIMM
      Installing the DIMM
    3. Ensure that the tabs have locked into place and the DIMM is secure.

    Install the top cover on the SP assembly

    Procedure
    1. Position the top cover over the SP assembly and align it with the slots in the sides at the rear of the SP assembly.
      Figure 65. Aligning the top cover
    2. Pull the top cover forward to secure it in place.
      Figure 66. Securing the top cover

    Install the SP assembly

    Procedure
    1. Align the pins on the top of the SP assembly with the grooves on the top of the chassis.
    2. Slide the SP assembly into the chassis until it stops, about halfway in.
      Figure 67. Sliding the SP assembly halfway into the chassis
      Sliding the node halfway into the chassis
    3. Pull the black release tab out completely, and slide the rest of the SP assembly back into the chassis.
      The black release tab slides back into the system as it is inserted.
      Figure 68. Installing the SP assembly
      Installing the node
    4. Pull the orange release trigger and push in gently to re-engage the locking mechanism.
      If the black release tab comes out when pulled, the locking mechanism is not engaged.

    Rebooting an SP assembly into Normal Mode

    Before you begin

    If you removed the SP assembly during the replacement, wait about 10-15 minutes after reinserting the SP assembly into the system to allow the SP assembly to fully reboot into Service Mode. Ensure that the SP assembly fault LED is flashing alternating amber and blue (1 hz) before continuing.

    Note:  If you attempt this task before the SP assembly has completed its automatic reboot into Service Mode, the attempt to reboot into Normal mode fails.
    Reboot the recently serviced SP assembly into Normal Mode using the procedure that follows:
    Procedure
    1. Open Unisphere and select Service, then Service Tasks.
    2. Under the name of the SP assembly where you installed the new part, select Reboot and the click Execute.
    3. When prompted, enter the service password to put the SP assembly into Normal Mode.

      It may take up to 15 minutes for the system to complete its reboot, and return to normal mode.

    Verifying the operation of the new part in Unisphere

    Verify that the new part is recognized by your system, and operating correctly.

    Procedure
    1. In Unisphere, select System View.
    2. On the Summary page, confirm that the system status is OK.
    3. Select the Enclosures page.
    4. Verify that the part appears with the OK status in the enclosure view. You may need to refresh Unisphere by clicking on the refresh icon next to the Enclosures view.
      If the system health monitor shows the part as faulted, contact your service provider.

    Returning a faulted part

    We appreciate the return of defective material within 5 business days (for US returns). For International customers, please return defective material within 5-10 business days. All instructions and material required to return your defective part were supplied with your good part shipment.

    Procedure
    1. Package the faulted part in the shipping box that contained the replacement part, and seal the box.
    2. Ship the failed part to your service provider as described in the instructions that were included with the replacement part.
    3. (Optional) For more information about returning customer-replaceable parts, from Unisphere, click Support > Replace Disk Drives, Power Supplies, and Other Parts > Return a Part to display the part return instructions.
      If your screen does not show the Return a Part option, contact your service provider for instructions on what to do next.

    Replace an M.2 SSD

    Take the following actions to remove the faulted M.2 SSD and install the replacement M.2 SSD into the system.

    The M.2 SSD are located within the SP assembly. You can access the M.2 SSD by removing the SP assembly from the chassis and opening the top cover.

    Identifying and locating the faulted part in Unisphere

    Before you replace a faulted part, locate its placement within the storage system.

    Procedure
    1. In Unisphere, select System View.
    2. Select the Enclosures page.
    3. Locate the faulted part marked orange, and displayed in the Enclosures view.

    Preparing the storage processor (SP) for service

    To protect your system from accidental data loss during this maintenance activity, prepare the SP for service. You prepare the SP for service by putting it in Service Mode.

    Entering Service Mode stops I/O on the SP so that service tasks can be safely performed.

    Note:  Both SPs must NOT be in Service Mode at the same time.
    Procedure
    1. Open Unisphere and select Service, then Service Tasks.
    2. Under the name of the storage processor where you will install the new part, select Enter Service Mode and then click Execute.
    3. When prompted, enter the Service Password to put the SP into Service Mode.
    4. (Optional) Either refresh your browser or follow the on-screen instructions to restore full-functionality to Unisphere.
      When placing the primary storage processor into Service Mode, Unisphere will become momentarily unresponsive (about one minute) as the management services transfer over to the other SP.
    5. Return to cabinet with the system and locate the SP in the DPE from the back of the cabinet.
    6. Wait until the SP fault LED is flashing alternating amber and blue before continuing to the next task.
      The SP fault LED will flash alternating amber and blue while the SP remains in Service mode and is receiving active power.
      Figure 69. Storage processor assembly LEDs
      Table 7. Storage processor assembly LEDs
      LED
      Location
      State
      Description
      Storage processor assembly fault
      Amber
      Fault has occurred.
      Blue
      A management IP address has been assigned.
      Amber or blue blinking
      System is booting.
      Blue and amber alternating (blue for 3 seconds)
      System not initialized. A management IP address has not been assigned.
      Blue and amber alternating at one second intervals
      Storage processor assembly in Service Mode.
      Off
      No fault has occurred, normal operation.
      Storage processor assembly power
      Green
      Storage processor assembly is on (main power).
      Green blinking
      Storage processor assembly is initializing a serial over LAN session (Standby Mode).
      Off
      Storage processor assembly is off.

    Remove the SP assembly

    This procedure describes how to remove a SP assembly from the chassis. There are two SP assembliess. The top SP assembly is considered to be upside-down and mirrors the bottom SP assembly. The illustration shows the removal of the bottom SP assembly. The procedure for removing the top SP assembly is the same.

    CAUTION  Do not remove a SP assembly while the "Unsafe to remove" LED is lit.
    Procedure
    1. Rotate the power cable retention bail to the left (right for top power supply). Disconnect the power cable from the power supply.
      Note:  If the I/O module and network cables are not already labeled, label them clearly for reconnecting later.
      Figure 70. Removing the power cable
    2. Disconnect the network and all other cables from the back of the I/O modules and network ports on the SP assembly.
      Note:  Do not remove any cables from the other SP assembly.
    3. Pull the orange release trigger while gently pushing in on the SP assembly.
      The hook disengages from the locking mechanism, and the release tab slides out.
      Note:  The SP assembly comes completely out of the chassis. Be prepared to support the SP assembly to avoid dropping it.
      Figure 71. Disengaging the locking mechanism
      Disengaging the locking mechanism
    4. Use the release handle to pull the SP assembly outward enough to grasp the sides with both hands. Then, with both hands supporting the SP assembly, pull the SP assembly fully out of the enclosure.
      Figure 72. Removing the SP assembly
      Removing the node
    5. Place the SP assembly on a clean, flat, static-free work surface.

    Remove the top cover from the SP assembly

    Before you begin

    Ensure that the internal battery has powered off before removing the top cover. After removing the SP assembly from the rack, wait at least 30 seconds, or until you hear the internal battery power off.

    Procedure
    1. While pushing down the two blue release buttons, slide the top cover towards the rear of the system, until it stops.
      Figure 73. Releasing the top cover
    2. Lift the top cover upward and remove it from the SP assembly.
      Figure 74. Removing the top cover

    Remove the faulted M.2 SSD

    Procedure
    1. Locate the M.2 SSD adaptor in the SP assembly.
      The M.2 SSD adaptor is identified by the blue retaining tabs.
    2. Depress the blue retaining tabs downward to free the M.2 SSD adaptor from its slot.
    3. Touching only the outside edges of the M.2 SSD adaptor, remove the M.2 SSD adaptor.
      Figure 75. Removing the M.2 SSD adaptor
    4. Identify the faulted M.2 SSD. One is labeled DRIVE 0 and the other is labeled DRIVE 1.
    5. On the faulted M.2 SSD, gently pull the handle on the release tab to separate it from the tab holding it in place.
    6. Pull straight up on the pull tab to free it from the M.2 SSD adaptor.
    7. Remove the M.2 SSD from the M.2 SSD adaptor.
      Figure 76. Removing the M.2 SSD from the M.2 SSD adaptor
      Removing the internal M.2 boot module from the M.2 boot module adaptor

    Install the M.2 SSD

    Procedure
    1. Place the M.2 SSD into the M.2 SSD adaptor.
    2. Align the blue tab on the replacement M.2 SSD with the slot on the M.2 SSD adaptor and gently push it into place.
    3. Connect the pull tab to the blue adapter.
      Figure 77. Installing the M.2 SSD into the M.2 SSD adaptor
      Installing the internal M.2 boot module into the M.2 boot module adaptor
    4. Touching only the outside edges of the M.2 SSD adaptor, align the M.2 SSD adaptor with the connector.
    5. Firmly push the M.2 SSD adaptor straight down into the connector.
      When the M.2 SSD adaptor is fully seated, you will hear a snap, and feel the connector latches click into place.
      Figure 78. Installing the M.2 SSD adaptor

    Install the top cover on the SP assembly

    Procedure
    1. Position the top cover over the SP assembly and align it with the slots in the sides at the rear of the SP assembly.
      Figure 79. Aligning the top cover
    2. Pull the top cover forward to secure it in place.
      Figure 80. Securing the top cover

    Install the SP assembly

    Procedure
    1. Align the pins on the top of the SP assembly with the grooves on the top of the chassis.
    2. Slide the SP assembly into the chassis until it stops, about halfway in.
      Figure 81. Sliding the SP assembly halfway into the chassis
      Sliding the node halfway into the chassis
    3. Pull the black release tab out completely, and slide the rest of the SP assembly back into the chassis.
      The black release tab slides back into the system as it is inserted.
      Figure 82. Installing the SP assembly
      Installing the node
    4. Pull the orange release trigger and push in gently to re-engage the locking mechanism.
      If the black release tab comes out when pulled, the locking mechanism is not engaged.

    Rebooting an SP assembly into Normal Mode

    Before you begin

    If you removed the SP assembly during the replacement, wait about 10-15 minutes after reinserting the SP assembly into the system to allow the SP assembly to fully reboot into Service Mode. Ensure that the SP assembly fault LED is flashing alternating amber and blue (1 hz) before continuing.

    Note:  If you attempt this task before the SP assembly has completed its automatic reboot into Service Mode, the attempt to reboot into Normal mode fails.
    Reboot the recently serviced SP assembly into Normal Mode using the procedure that follows:
    Procedure
    1. Open Unisphere and select Service, then Service Tasks.
    2. Under the name of the SP assembly where you installed the new part, select Reboot and the click Execute.
    3. When prompted, enter the service password to put the SP assembly into Normal Mode.

      It may take up to 15 minutes for the system to complete its reboot, and return to normal mode.

    Verifying the operation of the new part in Unisphere

    Verify that the new part is recognized by your system, and operating correctly.

    Procedure
    1. In Unisphere, select System View.
    2. On the Summary page, confirm that the system status is OK.
    3. Select the Enclosures page.
    4. Verify that the part appears with the OK status in the enclosure view. You may need to refresh Unisphere by clicking on the refresh icon next to the Enclosures view.
      If the system health monitor shows the part as faulted, contact your service provider.

    Returning a faulted part

    We appreciate the return of defective material within 5 business days (for US returns). For International customers, please return defective material within 5-10 business days. All instructions and material required to return your defective part were supplied with your good part shipment.

    Procedure
    1. Package the faulted part in the shipping box that contained the replacement part, and seal the box.
    2. Ship the failed part to your service provider as described in the instructions that were included with the replacement part.
    3. (Optional) For more information about returning customer-replaceable parts, from Unisphere, click Support > Replace Disk Drives, Power Supplies, and Other Parts > Return a Part to display the part return instructions.
      If your screen does not show the Return a Part option, contact your service provider for instructions on what to do next.

    Replace an SP assembly

    Take the following actions to remove the faulted SP assembly from the enclosure and install the replacement SP assembly.

    Identifying and locating the faulted part in Unisphere

    Before you replace a faulted part, locate its placement within the storage system.

    Procedure
    1. In Unisphere, select System View.
    2. Select the Enclosures page.
    3. Locate the faulted part marked orange, and displayed in the Enclosures view.

    Preparing the storage processor (SP) for service

    To protect your system from accidental data loss during this maintenance activity, prepare the SP for service. You prepare the SP for service by putting it in Service Mode.

    Entering Service Mode stops I/O on the SP so that service tasks can be safely performed.

    Note:  Both SPs must NOT be in Service Mode at the same time.
    Procedure
    1. Open Unisphere and select Service, then Service Tasks.
    2. Under the name of the storage processor where you will install the new part, select Enter Service Mode and then click Execute.
    3. When prompted, enter the Service Password to put the SP into Service Mode.
    4. (Optional) Either refresh your browser or follow the on-screen instructions to restore full-functionality to Unisphere.
      When placing the primary storage processor into Service Mode, Unisphere will become momentarily unresponsive (about one minute) as the management services transfer over to the other SP.
    5. Return to cabinet with the system and locate the SP in the DPE from the back of the cabinet.
    6. Wait until the SP fault LED is flashing alternating amber and blue before continuing to the next task.
      The SP fault LED will flash alternating amber and blue while the SP remains in Service mode and is receiving active power.
      Figure 83. Storage processor assembly LEDs
      Table 8. Storage processor assembly LEDs
      LED
      Location
      State
      Description
      Storage processor assembly fault
      Amber
      Fault has occurred.
      Blue
      A management IP address has been assigned.
      Amber or blue blinking
      System is booting.
      Blue and amber alternating (blue for 3 seconds)
      System not initialized. A management IP address has not been assigned.
      Blue and amber alternating at one second intervals
      Storage processor assembly in Service Mode.
      Off
      No fault has occurred, normal operation.
      Storage processor assembly power
      Green
      Storage processor assembly is on (main power).
      Green blinking
      Storage processor assembly is initializing a serial over LAN session (Standby Mode).
      Off
      Storage processor assembly is off.

    Remove the SP assembly

    This procedure describes how to remove a SP assembly from the chassis. There are two SP assembliess. The top SP assembly is considered to be upside-down and mirrors the bottom SP assembly. The illustration shows the removal of the bottom SP assembly. The procedure for removing the top SP assembly is the same.

    CAUTION  Do not remove a SP assembly while the "Unsafe to remove" LED is lit.
    Procedure
    1. Rotate the power cable retention bail to the left (right for top power supply). Disconnect the power cable from the power supply.
      Note:  If the I/O module and network cables are not already labeled, label them clearly for reconnecting later.
      Figure 84. Removing the power cable
    2. Disconnect the network and all other cables from the back of the I/O modules and network ports on the SP assembly.
      Note:  Do not remove any cables from the other SP assembly.
    3. Pull the orange release trigger while gently pushing in on the SP assembly.
      The hook disengages from the locking mechanism, and the release tab slides out.
      Note:  The SP assembly comes completely out of the chassis. Be prepared to support the SP assembly to avoid dropping it.
      Figure 85. Disengaging the locking mechanism
      Disengaging the locking mechanism
    4. Use the release handle to pull the SP assembly outward enough to grasp the sides with both hands. Then, with both hands supporting the SP assembly, pull the SP assembly fully out of the enclosure.
      Figure 86. Removing the SP assembly
      Removing the node
    5. Place the SP assembly on a clean, flat, static-free work surface.

    Remove the top cover from the SP assembly

    Before you begin

    Ensure that the internal battery has powered off before removing the top cover. After removing the SP assembly from the rack, wait at least 30 seconds, or until you hear the internal battery power off.

    Procedure
    1. While pushing down the two blue release buttons, slide the top cover towards the rear of the system, until it stops.
      Figure 87. Releasing the top cover
    2. Lift the top cover upward and remove it from the SP assembly.
      Figure 88. Removing the top cover

    Transfer parts from the faulted SP assembly to the replacement SP assembly

    Transfer the following components from the faulted SP assembly to the corresponding locations in the replacement SP assembly.

    To help ensure the correct placement in the enclosure, transfer only one component at a time.

    Remove the internal battery backup module

    Procedure
    1. Remove the internal battery backup module cover.
    2. Disconnect the internal battery backup module cable from the motherboard by squeezing the white tab and lifting upward.
    3. Push down on the two blue retaining tabs. At the same time, pull up on the blue pull tab.
      Figure 89. Releasing the internal battery backup module
      Releasing the BBU
    4. Lift the internal battery backup module away from the motherboard.
      Figure 90. Removing the internal battery backup module
      Removing the BBU
    5. Remove the cable from the internal battery backup module by squeezing the white tab and lifting upward.

    Install the internal battery backup module

    Procedure
    1. Connect the internal battery backup module cable to the internal battery backup module.
    2. Place the internal battery backup module into position on the motherboard.
      Figure 91. Installing the internal battery backup module
    3. Press downward on the internal battery backup module to lock it into position.
    4. Connect the internal battery backup module cable to the motherboard.
      Figure 92. Securing the internal battery backup module
    5. Install the internal battery backup module cover.

    Install the top cover on the SP assembly

    Procedure
    1. Position the top cover over the SP assembly and align it with the slots in the sides at the rear of the SP assembly.
      Figure 93. Aligning the top cover
    2. Pull the top cover forward to secure it in place.
      Figure 94. Securing the top cover

    Install the SP assembly

    Procedure
    1. Align the pins on the top of the SP assembly with the grooves on the top of the chassis.
    2. Slide the SP assembly into the chassis until it stops, about halfway in.
      Figure 95. Sliding the SP assembly halfway into the chassis
      Sliding the node halfway into the chassis
    3. Pull the black release tab out completely, and slide the rest of the SP assembly back into the chassis.
      The black release tab slides back into the system as it is inserted.
      Figure 96. Installing the SP assembly
      Installing the node
    4. Pull the orange release trigger and push in gently to re-engage the locking mechanism.
      If the black release tab comes out when pulled, the locking mechanism is not engaged.

    Rebooting an SP assembly into Normal Mode

    Before you begin

    If you removed the SP assembly during the replacement, wait about 10-15 minutes after reinserting the SP assembly into the system to allow the SP assembly to fully reboot into Service Mode. Ensure that the SP assembly fault LED is flashing alternating amber and blue (1 hz) before continuing.

    Note:  If you attempt this task before the SP assembly has completed its automatic reboot into Service Mode, the attempt to reboot into Normal mode fails.
    Reboot the recently serviced SP assembly into Normal Mode using the procedure that follows:
    Procedure
    1. Open Unisphere and select Service, then Service Tasks.
    2. Under the name of the SP assembly where you installed the new part, select Reboot and the click Execute.
    3. When prompted, enter the service password to put the SP assembly into Normal Mode.

      It may take up to 15 minutes for the system to complete its reboot, and return to normal mode.

    Verifying the operation of the new part in Unisphere

    Verify that the new part is recognized by your system, and operating correctly.

    Procedure
    1. In Unisphere, select System View.
    2. On the Summary page, confirm that the system status is OK.
    3. Select the Enclosures page.
    4. Verify that the part appears with the OK status in the enclosure view. You may need to refresh Unisphere by clicking on the refresh icon next to the Enclosures view.
      If the system health monitor shows the part as faulted, contact your service provider.

    Returning a faulted part

    We appreciate the return of defective material within 5 business days (for US returns). For International customers, please return defective material within 5-10 business days. All instructions and material required to return your defective part were supplied with your good part shipment.

    Procedure
    1. Package the faulted part in the shipping box that contained the replacement part, and seal the box.
    2. Ship the failed part to your service provider as described in the instructions that were included with the replacement part.
    3. (Optional) For more information about returning customer-replaceable parts, from Unisphere, click Support > Replace Disk Drives, Power Supplies, and Other Parts > Return a Part to display the part return instructions.
      If your screen does not show the Return a Part option, contact your service provider for instructions on what to do next.
